Industrial particle and dust extractor

BOFA's Dust Pro Range of extraction units have been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and lathing.

One of the main problems with other router extraction relates to the type of pump used. Most have brushed motors which are noisy in operation and frequently burn out, with the average life of brushes being around 800 hours.

The pumps used in the Dust Pro range are brushless and designed for continuous running with minimum 30,000 hours use before servicing. They generate high vacuums and are quiet in operation. The large capacity bag filter has a very high efficiency and can easily be emptied and re-used.

Back...

Part Numbers

Model

Part Number

Replacement Filters

Bag Filter

HEPA Filter

DP50

230V

D0242A

A1030135

N/A

115V

D0241A

DP50
(with 18mm ID cable gland)

230V

D0342A

A1030135

N/A

115V

D0341A

Technical Data

Model

DP 50

EC

US

Dimensions (h × w × d)

505 × 285 × 285mm

19.88 × 11.22 × 11.22"

Weight

40kg

88lbs

Cabinet Construction

Brushed stainless steel /
Powder coated mild steel

Brushed stainless steel /
Powder coated mild steel

Blower

0.37kw 80m³/hr 110mbar
Brushless Motor

0.37kw 47cfm 110mbar
Brushless Motor

Electronics

230v 1ph 50/60Hz
Full load current 3.1 amps
Fuse Rating 5 amps
3m hard wired power cable

115v 60/50Hz
Full load current 6.0 amps
Fuse Rating 10 amps
3m hard wired power cable

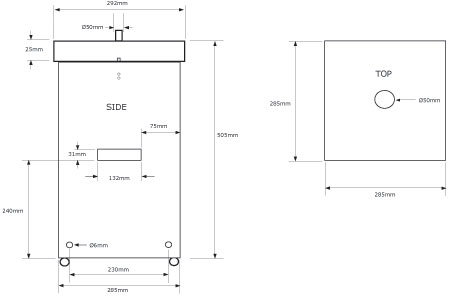

Components Diagram
