Industrial particle and dust extractor

BOFA's Dust Pro Range of extraction units have been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and lathing.

One of the main problems with other router extraction relates to the type of pump used. Most have brushed motors which are noisy in operation and frequently burn out, with the average life of brushes being around 800 hours.

The pumps used in the Dust Pro range are brushless and designed for continuous running with minimum 30,000 hours use before servicing. They generate high vacuums and are quiet in operation. The large capacity bag filter has a very high efficiency and can easily be emptied and re-used.

Back...

Part Numbers

Model

Part Number

Replacement Filters

Bag Filter

HEPA Filter

DP100

230V

D0542A

A1030134

A1030161

115V

D0541A

Technical Data

Model

DP 100

EC

US

Dimensions (h × w × d)

530 × 460 × 655mm

20.87 × 18.11 × 25.79"

Weight

40kg

88lbs

Cabinet Construction

Brushed stainless steel/
Powder coated mild steel

Brushed stainless steel/
Powder coated mild steel

Blower

0.8Kw 180m³/hr 110mbar
Brushless Motor

0.8Kw 105cfm 110mbar
Brushless Motor

Electronics

230v 1ph 50/60Hz
Full load current 6.2 amps
Illuminated 8A trip ON/OFF switch
3m hard wired power cable

115v 60/50Hz
Full load current 12 amps
Illuminated 8A trip ON/OFF switch
3m hard wired power cable

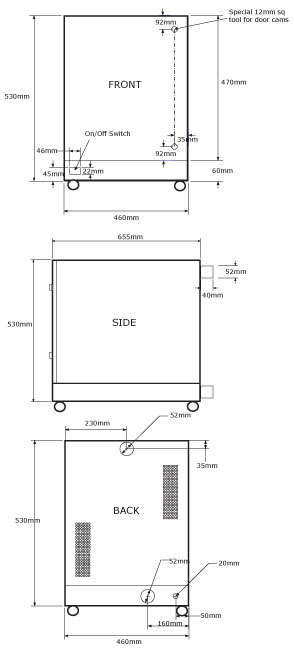

Components Diagram
