Accessories

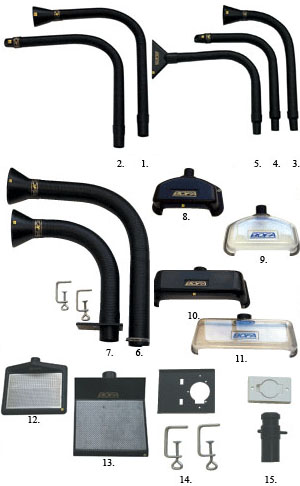

High Volume Accessories.

BOFA offer a wide range of volume LEV extraction accessories. From extraction arms with diameters of 32mm for intricate soldering up to 75mm arms for heavy duty applications such as transformer production. Down draft trays and table top cowls for specific production demands are also available.

Part Numbers

50mm Stay Put Arms.

The arms are made of black carbon loaded compressed polystyrene construction.

A1020045

50mm Stay Put Arm with funnel 790mm in length, funnel 100mm in diameter.

A1020047

50mm Stay Put Arm with nozzle 790mm in length, nozzle has a 90 degree slant and is 40mm in diameter.

A1020049

50mm Stay Put Arm with slot 790mm in length, fish tail across and 25mm wide.

Diagrams above highlight the capture area of the stay put arms when extracting at a flow rate of 60m³/hr (darker shading) and 100m³/hr. These measurements were taken with the arm situated above the working area.

Diagrams above highlight the capture area of the stay put arms when extracting at a flow rate of 60m³/hr (darker shading) and 100m³/hr. These measurements were taken with the arm resting on the work surface.

50mm Cowls and Down-Draft Trays.

The 50mm cowls are made of black conductive H.I polystyrene construction. The clear 50mm cowls are made from clear PTG plastic. The 50mm downdraft tray carcass is made of condutctive H.I polystyrene. The tray is stainless steel.

CCC50ESD 50mm Black ESD Cowl
CCC50 50mm Clear Cowl

DDTT50 50 mm-es 50mm Downdraft Tray

The capture area of the 50mm cowl is taken from in front of the cowls, shown above. The height of the capture area is 100mm. 50mm cowl dimensions: 350 × 200 × 120mm (w × d × h).

The capture area is equal to the size of the stainless steel tray, which is 290 × 200mm. The tray will also capture fumes up to 100mm above the tray. 50mm downdraft tray dimensions: 360 × 310 × 75mm (w × d × h).

32mm and 75mm Stay Put Arms.

The arms are made of black carbon loaded compressed polystyrene construction.

A1020046

32mm Stay Put Arm with nozzle, 750mm in length, nozzle has a 90 degree slant and is 30mm in diameter.

A1020044

32mm Stay Put Arm with funnel750mm in length, funnel is 75mm in diameter.

A1020043

75mm Stay Put Arm with funnel 950mm in length, funnel 160mm in diameter.

Diagrams above highlight the capture area of the stay put arms when extracting at a flow rate of 30m³/hr (darker shading) and 50m³/hr for 32mm arms and 120m³/hr (darker shading) and 190m³/hr for 75mm arms. These measurements were taken with the arm situated above the working area.

Diagrams above highlight the capture area of the stay put arms when extracting at a flow rate of 30m³/hr (darker shading) and 50m³/hr for 32mm arms and 120m³/hr (darker shading) and 190m³/hr for 75mm arms. These measurements were taken with the arm resting sideways on the work surface.

75mm Cowls and Down-Draft Trays.

The 75mm cowls are made of black conductive H.I polystyrene construction. The clear 75mm cowls are made from clear PTG plastic. The 75mm downdraft tray carcass is made of aluminium. The tray is stainless steel.

CCC75ESD 75mm Black ESD Cowl
CCC75 75mm Clear Cowl

DDTT75 75mm Downdraft Tray

The capture area of the 75mm cowl is taken from in front of the cowls, shown above. The height of the capture area is 160mm. 75mm cowl dimensions: 560 × 180 × 180mm (w × d × h).

The capture area is equal to the size of the stainless steel tray, which is 340 x 255mm. The tray will also capture fumes up to 100mm above the tray. 75mm downdraft tray dimensions: 360 × 430 × 90mm (w × d × h).
