Mid to high end extractors for heavy duty Laser Marking, Coding and Engraving Industries.
- Blower with high airflow and pressure
- Filters with long life and low replacement cost
- Easi-Glide filter location mechanism
- Automatic closed loop flow control system
- Optional VOC gas sensors
- Technically advanced stop/start interfaces to laser

BOFA's mid to high end range of laser extraction systems combine extremely large filter capacity with high airflows and pressure. This combination makes them ideal for heavy duty applications that generate large amounts of particulate and gaseous organic compounds. Each system benefits from Automatic Closed Loop Flow Control. This feature enables the end user to set the required airflow for the application. The unit will then maintain this airflow throughout the life cycle of the filters.

The additional feature of BOFA's patent pending Easi-Glide filter location mechanism makes filter change easy, quick and safe. A truly state of the art laser fume purification solution.

Back...

Part Numbers

Model - Stainless Steel (SS)
or Powder Coated (PC) options

24V Start/Stop

Filter change/
System failure signal

VOC Monitoring

Hose Kit *

AD1500-SS

230V

L0852A

A2001

A2002

A2003

A1020069
125-125mm

AD1500-PC

230V

L0842A

A2001

A2002

A2003

A1020069
125-125mm

* Other Hose Kits are available. All of the above units are fitted with our standard filter combinations.
For specific applications please call us for details.

Replacement Filters snd Accessories *

Model

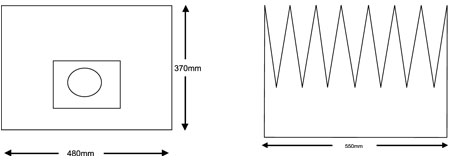

Pre Filter

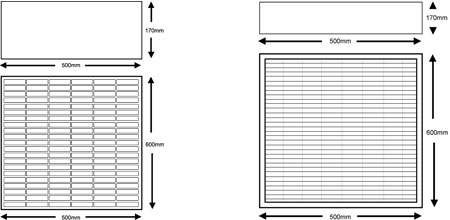

Combined HEPA/Gas Filter

Disposable Gas Filter 25kg

Refillable Gas Filter Tray

25Kg Refill Bag of Carbon

PVC HEPA Filter

PVC Gas Filter

AD1500

A1030058

A1030059

A1030061

A1030063

A1030064

A1030060

A1030062

* Other Filters are available. Please call us for details.

Teshnical Data

Model

AD1500

Dimensions (h × w × d)

1220 × 600 × 770mm
(48 × 23,6 × 30,3")

Cabinet construction

Brushed stainless steel/
Powder coated mild steel

Blower

3.3Kw 1500m³/hr

Electronics

230v 1ph 50/60Hz
Full load current: 19.2 amps

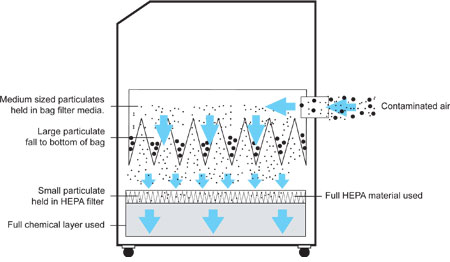

Filter Specification
