ADVANTAGE 2000
"Clam Shell"

For Reflow Ovens, Wave Solder Machines and Conformal Coating Systems.
Unit interfaces such as stop/start and system failure are available as options:
- High airflow blower
- 3 stage filtration
- Filter condition display
- Built in silencing
- Unique easy open "Clam Shell" and "Gull Wing" doors for filter access
- Automatic closed loop flow control allowing consistant airflow throughout filter life
- Long life filters with low replacement costs

BOFA's larger volume extraction units have the capacity to be used on all manufacturers of automated soldering systems such as reflow ovens.

Large filter capacity and vast carbon filters ensure long filter life and optimum extraction even when lead free solder is used.

Adjustable and regulated air flow control ensures consistant temperatures within the solder machine/reflow oven, throughout the life of the filters.

Easily accessible filters are accommodated by the uniquely styled "clam shell" and "gull winged" doors, which allow for maximum space and ease when changing filters.

Back...


Part Numbers

Model

24V Start/Stop

Filter change/
System failure signal

VOC Monitoring

V2000

E1743A0000

A2001

A2002

A2003

* Other Hose Kits are available. All of the above units are fitted with our standard filter combinations.
For specific applications please call us for details.

Back...


Replacement Filters and Accessories *

Model

Pre Filter

HEPA Filter

Gas Filter

V2000

A1030180

A1030183

A1030181

* Other Filters are available. Please call us for details.

Back...


Technical Data

Model

V2000

EC

US

Dimensions (h × w × d)

1450 × 1460 × 820mm

57.08 × 57.48 × 32.28"

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

Centrifugal / Radial Fan

Centrifugal / Radial Fan

Electronics

400V / 3 fázis / 50 Hz
4kw / 7.8A

480V / 3 fázis / 60 Hz
4.8kw / 7.8A

Weight

Approx 300kg

Approx 660Lbs

Noise level

64dB

64dB

Back...


Filter Specification


Pre Filter

Filter Media

Glass Fibre

Filter Media Construction

Pleated panel

Filter Efficiency

F6 (75% @ 0.8 microns)


Gas Filter

Gasket

Neoprene with Adhesive Backing

Activated Carbon

35 Kgs approx

Filter Housing

Zintec Mild Steel


HEPA Filter

HEPA Filter Media

Glass Fibre

HEPA Media Construction

Maxi Fold Construction with Webbing Spacers

Filter Efficiency

H13 (99.997% @ 0.3 microns)

Filter Housing

Zintec Mild Steel

Surface area

38.5m2 approx

Back...


V2000 Pre filter

V2000 Gas filter

V2000 HEPA Filter

Back...

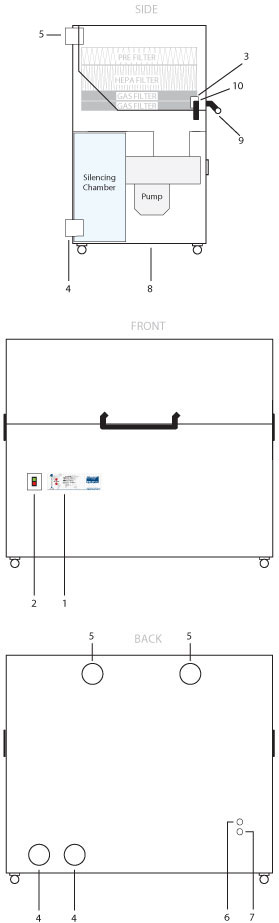

Components Diagram

1. Unit/Filter Condition Display - Automatic Closed Loop Flow Control
2. On/Off Switch
3. Filter Housing Cam Latch
4. Extracted Ait Outlet
5. Hose Inlet Connection 125mm × 2
6. Signal/ Interface Cable to Laser
7. Power Cable
8. Motor Cooling In/Out
9. Lid handle
10. Lid latch

Back...

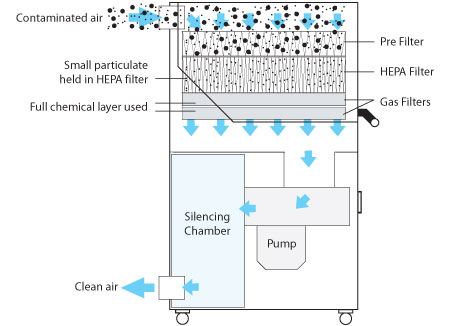

Airflow Through Filters
