For the Laser Marking, Coding and Engraving of PVC
- Blower with high airflow and pressure
- HCL and VOC gas sensors
- Automatic closed loop flow control
- Technically advanced stop/start interfaces to laser

The BOFA Advantage PVC extraction system has been purposely designed to effectively deal with the extremely corrosive fumes that are generated when lasing PVC.

Each unit is fitted with a specific HCL sensor as well as a general purpose VOC sensor to continually monitor the exhaust air of the unit. Automatic closed loop flow control comes as standard so consistent processing conditions are maintained. BOFA's patent pending, Easi-Glide filter location mechanism makes filter change simple, quick and safe.

Back...

Part Numbers

Model

24V Start/Stop

Filter change/
System failure signal

Hose Kit *

ADPVC

230V

L0952A

A2001

A2002

A1020008
75-50mm

115V

L0951A

* Other Hose Kits are available. All of the above units are fitted with our standard filter combinations.
For specific applications please call us for details.

Replacement Filters and Accessories *

Model

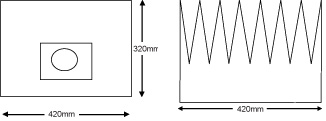

Pre Filter

Chemical pad filter

Combined HEPA/Gas Filter

Replacement PVC Sensor

ADPVC

A1030081

A1030083

A1030082

A1070003

* Other Filters are available. Please call us for details.

Technical Data

Model

ADPVC

EC

US

Dimensions (h × w × d)

1150 × 500 × 500mm

42.3 × 19.7 × 19.7"

Cabinet Construction

Brushed stainless steel with epoxy coated internal contact parts

Brushed stainless steel with epoxy coated internal contact parts

Blower

1.1kw 325m³/hr

1.1kw 191cfm

Electronics

230v 1ph 50/60Hz
Full load current 7.2 amps

115v 50/60Hz
Full load current 14.4 amps

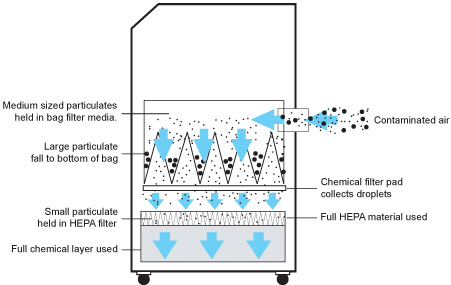

Filter Specifications
