- Auto sensing voltage (100-240v) for global use
- Specialy treated carbon for safe containment of print fumes
- Extended life carbon for low cost of ownership
- Low operating noise level
- Optional interfaces to stop/start via printing machine
- Optional VOC solvent gas sensors

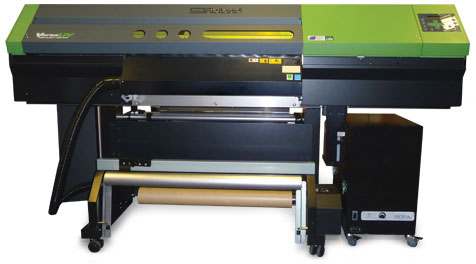

Introducing Bofa's pioneering new extractor, designed exclusively for the Print and Print Finishing Industries. The Print Pro Universal's unique features enable it to effectively capture and remove a wide range of solvents generated within these environments, including MEK, Ketones and Ozone from UV applications.

The Print Pro Universal is easily adapted to a huge range of environments, including wide format printing (both solvent and UV) and numerous mailroom applications such as UV coating, hot melt glue binding and mailwrap polywrapping.

Back...

Part Numbers

Model

Part Number

24V Sart/Stop

Filter change/
System failure signal

VOC Monitoring

PP UNIVERSAL

L2044A

A2001

A2002

A2003

Replacement Filters and Accessories *

Model

Pre Filter (Pack of Two)

Combined HEPA/Gas Filter

Gas Filter

PP UNIVERSAL

A1030159

A1030157

A1030158

Technical Data

Model

PP UNIVERSAL

EC

US

Dimensions (h × w × d)

670 × 370 × 430mm

26 × 15 × 17"

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

1.1kw

1.1kw

Airflow (with filters fitted)

380m³/hr

223cfm

Electronics

100-240v 1ph 50/60Hz
Full load current: 12.5 amps

100-240v 1ph 50/60Hz
Full load current: 12.5 amps

Filter Specifications

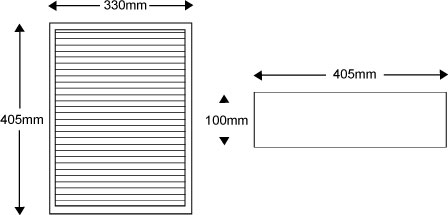

Pre Filter

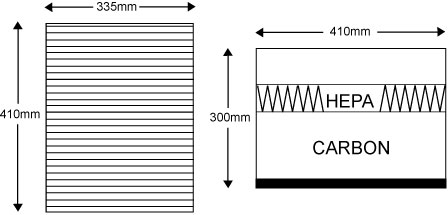

Combined HEPA/Gas Filter

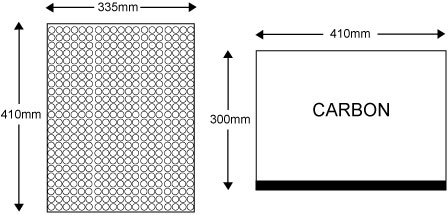

Gas Filter (for use with Ketones i.e. MEK, Acatone)

Filter Media

Maxi Pleat

Maxi Pleat

N/A

Surface Media Area

7m²

3.5m²

N/A

Housing

Card

Zintec Mild Steel

Zintec Mild Steel

Efficiency

85% @ 0.8 micon

99.997% @ 0.3 micon

N/A

Treated Activated Carbon

N/A

12kgs

25kgs

Gasket Seal

N/A

Neoprean

Neoprean
