Cost Effective Extraction solutions for the Laser Marking, Coding and Engraving.
- Low cost replacement filters
- Optional VOC gas sensors
- Optional interface with stop/start, filter blocked and extractor failure signals
- 2 Stage F8 Pre Filter with 6m2 of surface area

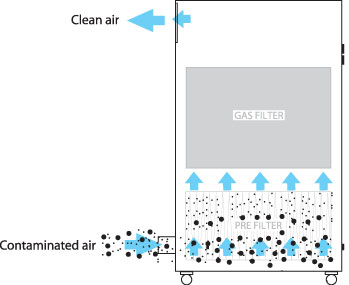

- Reverse Flow
- "Easy-Seal" Filter Location
- Small Footprint and Low Noise levels

BOFA's Advantage NANO fume extraction and filtration system has been designed to provide cost effective solutions for light to medium duty applications. These compact systems are ideal for small scale industrial environments and light laser coding applications, whilst the Reverse Flow filter technology enhances filter performance and ensures longer filter life.

Back...

Part Numbers

Model - Stainless Steel (SS)

24V Start/Stop

Filter change/
System failure signal

VOC Monitoring

AD NANO

230V

L2952A

A2001

A2002

A2003

115V

L2951A

* Other Hose Kits are available. All of the above units are fitted with our standard filter combinations.
For specific applications please call us for details.

Replacement Filters and Accessories *

Model

Pre Filter

Combined HEPA/Gas Filter

AD NANO

A1030190

A1030191

* Other Filters are available. Please call us for details.

Technical Data

Model

AD NANO

EC

US

Dimensions (h × w × d)

360 × 360 × 770 mm

14.17 × 14.17 × 30.32"

Cabinet Construction

Brushed stainless steel

Brushed stainless steel

Blower

90 watts 200m³/hr

95 watts 117cfm

Electronics

230v 1ph 50/60Hz
Full load current: 0.9 amps

115v 60/50Hz
Full load current: 1.2 amps

Weight

47kg

103Lbs

Noise level

56dB

56dB

Filter Specification
