For use with the GCC C180 Laser Engraver.
- Noise Level less than 55dBa
- Filters with long life and low replacement costs.
- Stylish colour match with C180
- On Board compressor versions
- Comes complete with extraction hose kit

The Advantage Base C180 has been designed specifically for the new GCC C180 laser engraver. The dimensions of the unit allow the C180 to fit perfectly onto the extractor, effectively doubling it up as a work station. The distinctive blue finish has been matched with the silver of the laser to give a stylish installation. The unit is also offered with an onboard air compressor to provide the laser its air assist requirements. All units come complete with extraction hose kit and compressor link up on compressor models.

Back...

Part Numbers

Model

VOC Monitoring

Compressor

AD Base C180

230V

L2142A

A2003

A2007

115V

L2141A

Replacement Filters and Accessories *

Model

Pre Filter

Combined HEPA/Gas Filter

AD Base C180

A103007

A1030050

* Other Filters are available. Please call us for details.

Technical Data

Model

AD Base C180

EC

US

Dimensions (h × w × d)

795 × 720 × 675mm

31.3 × 28.3 × 26.6"

Weight

86kg

190lbs

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

135w

135w

Electronics

230v 50/60Hz
Full load current: 2.7 amps

115v 50/60Hz
Full load current: 1.2 amps

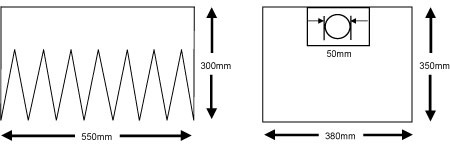

Filter Specification

Model

Pre Filter

Combined Filter

Part Number

A1030077

A1030050

Filter Media

Polyester

Glass Fibre, Activated Carbon 9kg

Surface Media

2.2m²

2m²

Conctruction

8 Pocket

Metal Case

Housing

Polyester

Mild Streel

Efficiency

EU6 (85% @ 0.8 microns)

H13 (99.997% @ 0.3 micons)
Multiple Gas
