Unique extractors designed to allow manufacturer's laser engravers to sit on top of the units.
- Blower with high airflow and pressure
- Filters with long life and low replacement cost
- Easi-Glide filter location mechanism
- Noise levels less than 60dBa
- Optional VOC gas sensors
- Advanced stop/start interface

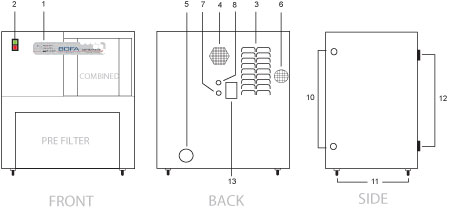

The Laser Companion range has been designed so that a number of manufacturer's laser engravers can sit on top of the extractor, effectively doubling it up as a work station.

Each of the 3 units in the range has the option of an onboard compressor for a compact installation. The Base 1 and Base 2 units benefit from manual speed control. BOFA's patent pending Easi-Glide filter location mechanism makes filter change easy, quick and safe.

Back...

Part Numbers

Model

24V
Start/Stop

Filter change/
System failure signal

VOC Monitoring

Compressor

Automatic Closed Loop Flow Control System

AD Base 3

230V

L0342A

A2001

A2002

A2003

A2007

A2006

115V

L0341A

All of the above units are fitted with our standard filter combinations.
For specific applications please contact us direct.

Hose Kits

* Other Hose Kits are available.

Replacement Filters and Accessories *

Model

Pre Filter

2nd Pre Filter

HEPA filter

Disposable Gas Filter 50L

Refillable Gas Filter Tray

25kgs Refill Bag of Carbon

Combined Filter

AD Base 3

A1030045

N/A

N/A

N/A

N/A

N/A

A1030050

* Other Filters are available. Please call us for details.
N/A = Not Applicable

Technical Data

Model

AD Base 3

EC

US

Dimensions (h × w × d)

765 × 680 × 470mm

30.1 × 26.8 × 18.5"

Weight

65kg

143lbs

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

0.35kw 200m³/hr

0.35kw 117cfm

Electronics

230v 50/60Hz
Full load current: 0.9 amps

115v 50/60Hz
Full load current: 1.2 amps

Filter Spacification

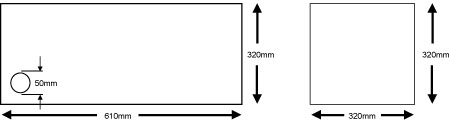

Pre Filter

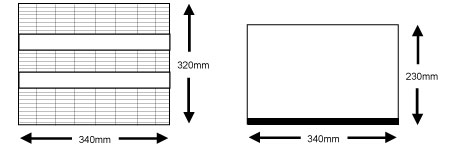

Combined Filter

Part Number

A1030045

A1030050

Filter Media

Glass Fibre

Glass Fibre, Activated Carbon

Surface Area

12m²

2.2m²

Construction

Maxi Pleat

Metal Case

Housing

MDPE Moulding

Mild Steel

Efficiency

EU8 (95% @ 0.8 microns)

H13 (99.997% @ 0.3 microns) Multiple Gas
