Unique extractors designed to allow manufacturer's laser engravers to sit on top of the units.
- Blower with high airflow and pressure
- Filters with long life and low replacement cost
- Easi-Glide filter location mechanism
- Noise levels less than 60dBa
- Optional VOC gas sensors
- Advanced stop/start interface

The Laser Companion range has been designed so that a number of manufacturer's laser engravers can sit on top of the extractor, effectively doubling it up as a work station.

Each of the 3 units in the range has the option of an onboard compressor for a compact installation. The Base 1 and Base 2 units benefit from manual speed control. BOFA's patent pending Easi-Glide filter location mechanism makes filter change easy, quick and safe.

Back...

Part Numbers

Model

24V
Start/Stop

Filter change/
System failure signal

VOC Monitoring

Compressor

Automatic Closed Loop Flow Control System

AD Base 1

230V

L1042A

A2001

A2002

A2003

A2007

A2006

115V

L1041A

All of the above units are fitted with our standard filter combinations.
For specific applications please contact us direct.

Hose Kits

* Other Hose Kits are available.

Replacement Filters and Accessories *

Model

Pre Filter

2nd Pre Filter

HEPA filter

Disposable Gas Filter 50L

Refillable Gas Filter Tray

25kgs Refill Bag of Carbon

Combined Filter

AD Base 1

A1030077

N/A

A1030078

A1030061

A1030063

A1030064

N/A

* Other Filters are available. Please call us for details.
N/A = Not Applicable

Technical Data

Model

AD Base 1

EC

US

Dimensions (h × w × d)

805 × 695 × 675mm

31.7 × 27.4 × 26.6"

Weight

86kg

189lbs

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

1.1kw 400m³/hr

1.1Kw 235cfm

Electronics

230v 50/60Hz
Full load current:7.2 amps

115V, 50/60 Hz
Full load current:14.4 amps

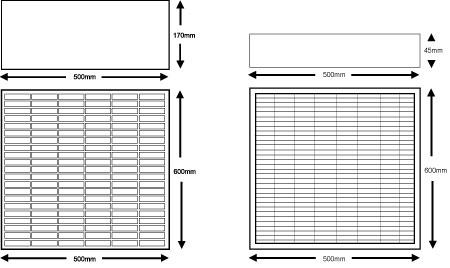

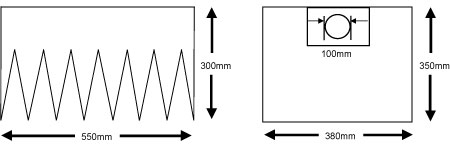

Filter Specification

Pre Filter

HEPA Filter

Gas Filter

Part Number

A1030077

A1030078

A1030061

Filter Media

Polyester

Glass Fibre

Impregnated Carbon 25kg

Surface Area

2.2m²

7.5m²

N/A

Construction

8 Pocket

Maxi Pleat

Granules

Housing

Polyester

Mild Steel

Mild Steel

Efficiency

EU6 (85% @ 0.8 microns)

H13 (99.997% @ 0.3 microns)

N/A
