For the Laser Marking, Cutting and Engraving Industries.
- High airflow blower

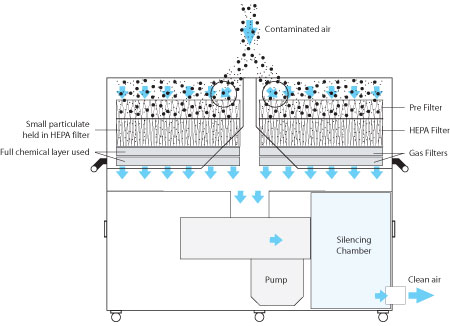

- 3 stage filtration
- Filter condition display
- Built in silencing
- Long life filters with low replacement costs
- Unique easy open "Clam Shell" and "Gull Wing" doors for filter access
- Automatic closed loop flow control for consistant airflow throughout filter life

BOFA’s NEW AD2000 and AD4000 laser fume extraction units combine large filter capacity with high airflows. This combination makes them ideal for large laser engravers, laser cutters as well as multiple laser coding installations.

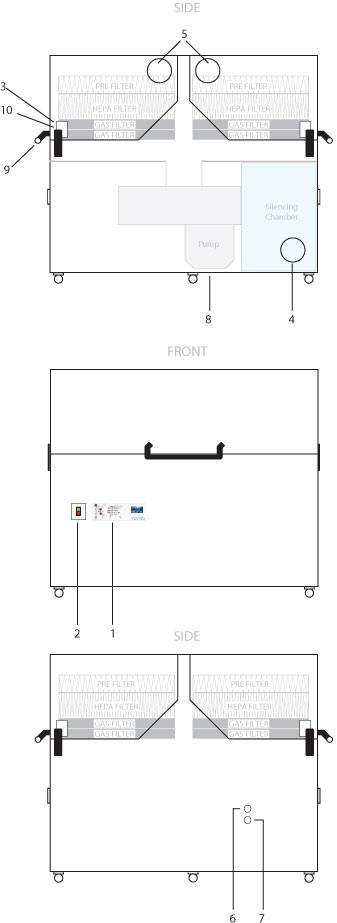

Easily accessible filters are accommodated by the uniquely styled "clam shell" and "gull winged" doors, which allow for maximum space and ease when changing filters.

Unit interfaces such as stop/start and system failure are available as options.

Back...

Part Numbers

Model

24V Start/Stop

Filter change/
System failure signal

VOC Monitoring

AD4000

L2643A0000

A2001

A2002

A2003

* Other Hose Kits are available. All of the above units are fitted with our standard filter combinations.
For specific applications please call us for details.

Replacement Filters snd Accessories *

Model

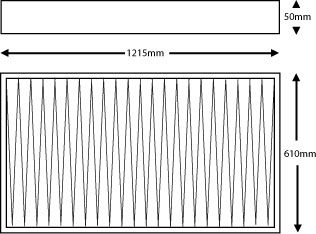

Pre Filter

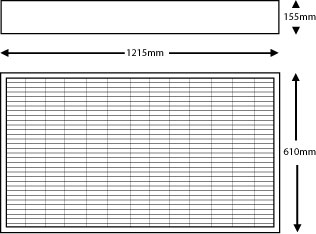

HEPA Filter

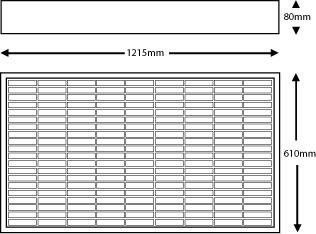

Gas Filter

AD4000

A130187

A1030184

A1030188

* Other Filters are available. Please call us for details.

Technical Data

Model

AD4000

EC

US

Dimensions (h × w × d)

1480 × 1480 × 1480mm

58,26 × 58,26 × 58,26"

Cabinet Construction

Powder coated mild steel

Powder coated mild steel

Blower

Centrifugal / Radial Fan

Centrifugal / Radial Fan

Electronics

400V / 3Ph / 50Hz
4kw / 7.8A

480V / 3Ph / 60Hz
4.8kw / 7.8A

Weight

Approx 450kg

Approx 990Lbs

Noise level

67dB

67dB

Filter Specification
